Brand Name : LTPM CHINA
Model Number : ZP-Series
Certification : CE
Place of Origin : China
MOQ : 1 set
Price : Negotiation
Payment Terms : 30% TT as deposit and 70% before shipping
Supply Ability : 25 sets
Delivery Time : In 35 days after receiving the deposit
Packaging Details : Wooden Case
Production capacity : 40000-85000pcs/h
Max. Diameter of tablet to be produced (mm) : 25
Voltage (v/hz) : 380/50
Max. Thickness of tablet (mm) : 9
Weight : 1600KG
Total power : 7.5kw
Rotary speed of the turret (rpm) : 14-35
Dimensions : 820*1100*1750mm
1. Adopts PLC control with auto protective function;
2. Touch screen operation. Operation menu is easy to understand;
3. Force-feeding unit with a good applicability to powder;
4. Central auto lubrication system;
5. Main and pre-pressing, tablets formed twice.
6. Force-feeding system is capable to increase the feeding ability and prevent thick granules separating from fine granules effectively.
7. All the parts are easy to be fixed, disassembled and cleaned.
Technical Data
(The following is the data of each series of super-large production models.)
No. of stations | 26 |
Tooling type | D |
Output range (Tablets/h) | 34000~171000 |
Rotation speed range (rpm) | 22~110RPM |
Main pressure | 100KN |
Pre-pressure | 16KN |
Max. filling depth | 20mm |
Max tablet diameter | Φ25mm |
Max length of irregular tablet | 25 mm |
Diameter of die | Φ38.1mm |
Diameter of punch | 25.35mm |
Pitch circle diameter | 370mm |
Length of punch | 133.6mm |
Main motor power | 7.5kw |
Dimension of machine L*W*H(mm) | 820*1100*1750mm |
Weight | 1600kg |
Company Profile
![]() |

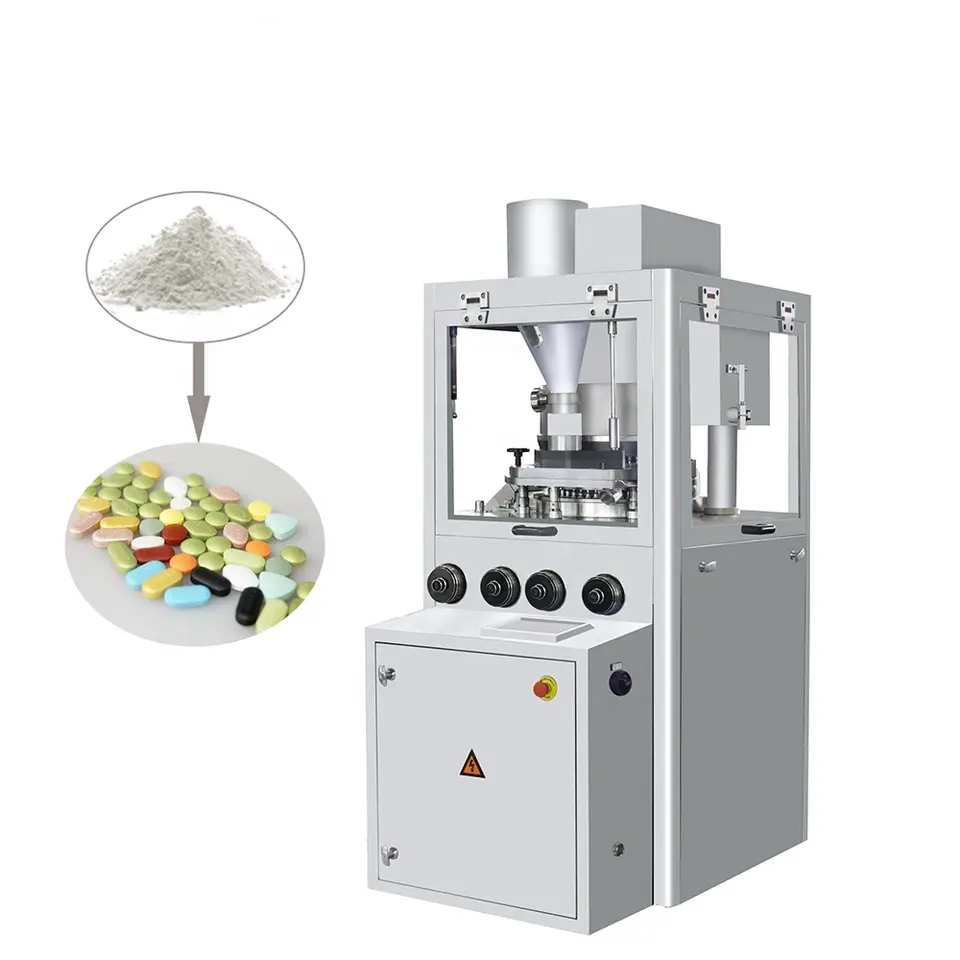

Pharmaceutical Intelligent Tablet Press Machine High Speed Rotary Chemical 85000pcs / H Images |
