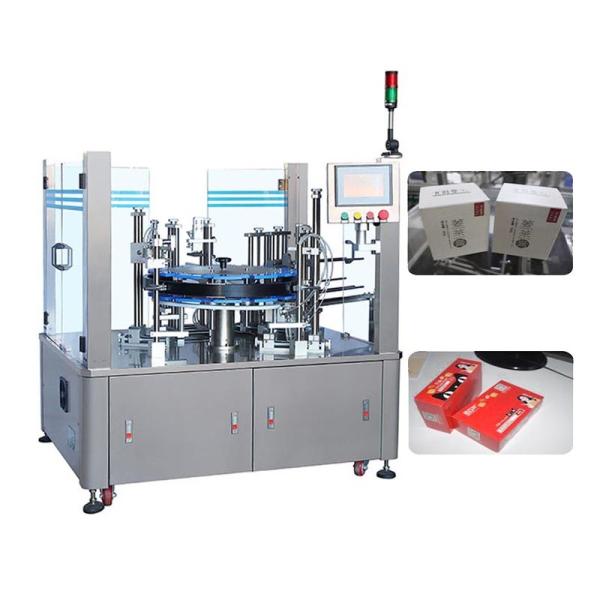

1.5Kw Vertical Semi Automatic Cartoning Machine For Blister Tube Sachet

Name: 15Kw Vertical Semi Automatic Cartoning Machine For Blister Tube Sachet
Brand: LEADTOP
Price: 1 USD

Quality 1.5Kw Vertical Semi Automatic Cartoning Machine For Blister Tube Sachet wholesale

Brand Name : LEADTOP

Model Number : ZH-50

Certification : CE certification

Place of Origin : China

MOQ : 1 set

Price : discuss personally

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 25 days/month

Delivery Time : 25days

Packaging Details : wooden box

Model : ZH-50

Machine noise : ≤80dB

Capacity : 20-50cartons/min

Power : 1.5Kw

Carton gram requirements : 250-350g/m3

Air pressure : 0.5-0.8Mpa

Contact Now

APPLICATION :Round bottled medicine, food-stuff, cosmetic, etc. packing into square box.

OPTION :Leaflet Inserting , Hot Glue, Hot Ribbon Date Code , Embossed date Code

FEATURES:

1. It is specially design to pack small quantities multi size box.

2. With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mould.

3. 304 stainless steel case

4. Advanced PLC Control System Combined with 5.7” Colorful Touch Screen Control Panel , can easily set and change the packing parameters.

1.5Kw Vertical Semi Automatic Cartoning Machine For Blister Tube Sachet

Main Technical Data:

Model	ZH-50
Packing speed	30-60 Cartons/min
Carton size range	L(40-100)mm×W(12-60)mm×H(12-60)mm
Carton gram requirements	250-350g/m³
Motor power	1.5KW
Power supply	Three phase 380V 50Hz
Machine noise	≤80dB
Air pressure	0.5-0.8 Mpa
Air consumption	150L/min
Dimension	1100×1500×1900 mm
Weight	250Kg

Detail

1.Large capacity storage box rack

With the long boxes' feeding shelf design, you can place up to 1000 pcs boxes, the machine will alarm and stop automatically when

the boxes are going to running out.

2.Sensor Identify the box

The box storage shelf will stop to feed boxes once there is no box get detected on the conveyor, which will prevent from the box wasting.

Packing Process:

1,Push box into star wheel.

2,Fold box lower small flap.

3,Press both lower big flaps.

4,Flatten both big flaps.

5,Product fall into box.

6,Fold box upper small flap.

7,Press both upper big flaps.

8,Flatten both big flaps.

9,Product push out.
